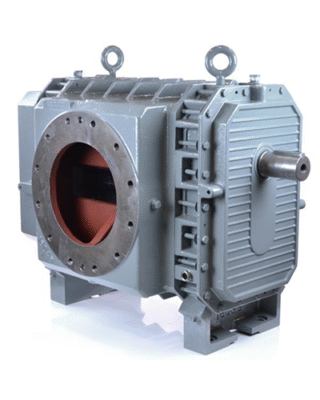

821 RCS-JV
RCS-J rotary blowers are heavy-duty units designed with integral-shaft ductile iron impellers having an involute profile. WHISPAIR blowers reduce noise and power loss by utilizing an exclusive wrap-around plenum and proprietary WHISPAIR jet to control pressure equalization – feeding backflow in the direction of impeller movement, thereby aiding rotation.
Categories: New PD Blowers, Roots RCS-J Whispair Rotary Positive Blowers
Out of Stock
Call For PricingDescription
The headplates, gear cover, drive end cover and rigid, one- piece casing are grey iron. Carburized and ground alloy steel spur timing gears are taper mounted on the shafts, secured with a locknut. Cylindrical roller bearings are used.
Piston rings reduce air leakage through the shaft openings in the headplates, and lip-type oil seal prevent lubricant from entering the air chamber.The RCS-J incorporates thrust control, with splash oil lubrication at both ends of the blower.
Frame sizes 715J and 721J are designed with detachable rugged steel mounting feet that permit in-field adaptability to either vertical or horizontal installation requirements.
The top shaft is extended for drive on side outlet blowers, and either shaft can be extended for drive on top or bottom outlet blowers.
