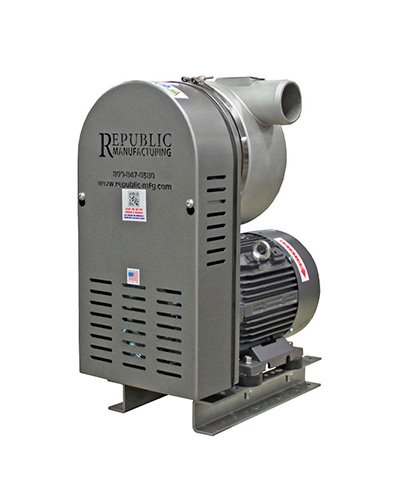

RB800 BLOWER ASSEMBLY
The RB800 is robust and hard-working. The blower comes with ceramic hybrid bearings, 360 degree rotatable outlet discharge, easy to remove stainless steel bearing housing assembly, and zinc plated steel motor pulley.
Documents:
Republic-Centrifugal-Blower-Brochure-Web.pdf
Republic_Centrifugal_Blower_Manual.pdf
Centrifugal-Blower-Performance-Curves-RB-800-60HZ_enlarged.pdf
Centrifugal-Blower-Performance-Curves-RB-800-50HZ_enlarged.pdf
No categories assigned.
Call For PricingDescription
Republic offers a complete line of centrifugal blowers for vacuum or compressed air applications. Centrifugal blowers provide dry, clean, oil-free air and require low energy consumption. Unlike compressed air systems, this series is safe to run at low pressure, and allows for increased production speeds or levels.
SPECS
Horsepower Available: 5 hp, 7.5 hp, 10 hp
Max Flow: 975 cfm
Max Pressure: 100 in.H2O
Max Vacuum: 78 in.H2O
The Republic RB800 centrifugal blower provides a maximum air flow of 975 cfm, maximum vacuum of 78 in.H2O, and maximum pressure of 100 in.H2O. Available with 5 hp, 7.5 hp, and 10 hp motor.
Options Available:
Stainless steel impeller
Hard anodized impeller
inlet and outlet flanges
Exhaust silencer
Enclosures for noise control
