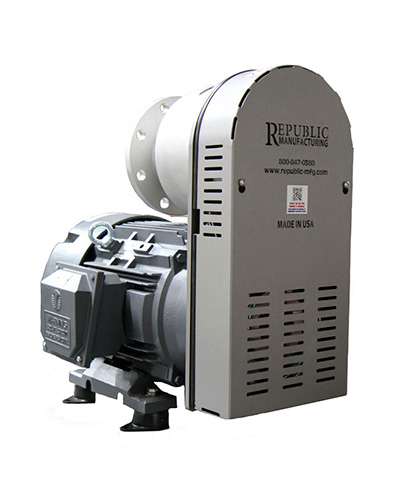

RB2400 BLOWER ASSEMBLY
The RB2400 provides the flow capacities of two blowers in one. The blower comes with ceramic hybrid bearings, 360 degree rotatable outlet discharge, easy to remove stainless steel bearing housing assembly, and zinc plated steel motor pulley.
Documents:
Republic-Centrifugal-Blower-Brochure-Web.pdf
Republic_Centrifugal_Blower_Manual.pdf
Centrifugal-Blower-Performance-Curves-RB-2400-60HZ_enlarged.pdf
Centrifugal-Blower-Performance-Curves-RB-2400-50HZ_enlarged.pdf
No categories assigned.
Call For PricingDescription
Republic offers a complete line of centrifugal blowers for vacuum or compressed air applications. Centrifugal blowers provide dry, clean, oil-free air and require low energy consumption. Unlike compressed air systems, this series is safe to run at low pressure, and allows for increased production speeds or levels.
SPECS
Horsepower Available: 25 hp, 30 hp, 40 hp, 50 hp
Max Flow: 2,500 cfm
Max Pressure: 112 in.H2O
Max Vacuum: 80 In.H2O
The Republic RB2400 centrifugal blower provides a maximum air flow of 2,500 cfm, maximum vacuum of 80 in.H2O, and maximum pressure of 112 in.H2O. Available with 25 hp, 30 hp, 40 hp, and 50 hp motor.
Options Available:
Stainless steel impeller
Hard anodized impeller
inlet and outlet flanges
Exhaust silencer
Enclosures for noise control
